Studio Monitors

Product Description


Professional Monitoring for any Studio

The C Series studio monitor helps you track, monitor, and mix with confidence by providing accurate sound and dynamic acoustic control. Equipped with a 5”6”8” woven Kevlar low-frequency driver and 1” natural silk dome tweeter, the C Series delivers a flat frequency response, enhanced stereo imaging, and increased clarity for authentic mixing in a space-saving design. The bi-amplified 80 Watt Class A/B amplification means high power with less noise and ensures that your monitoring setup can handle today's modern music with ease. With the C Series, your music is ready for any listening environment.

Sweeter Sweet Spot

The tweeter’s waveguide has been enhanced to provide an expansive sweet spot and superior stereo imaging. A wider mix position gives you professional monitoring for any caliber studio. Pinhole-mounted LED placement cues help locate and light up the sweet spot to ensure a speaker placement that reliably translates stereo information and frequencies. When the LEDs turn bright, you know you’re dead center and ready to start mixing your sessions or laying down tracks with the C Series.

Acoustic Control

Mixing doesn’t occur in a vacuum. Your listening environment influences your mixing decisions and, ultimately, the sound of your music. The C Series Acoustic Space Control, a series of calibration switches, helps provide optimal acoustic conditions for tracking, mixing, and monitoring anywhere. Adapt the C Series to any mixing environment—from bedrooms to basements to professional studios—without compromising frequency detail or stereo image. The result is a flexible monitoring setup for the most demanding mixing environments.

Product Specification

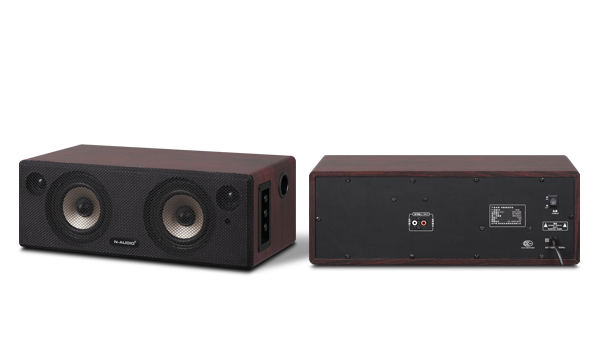

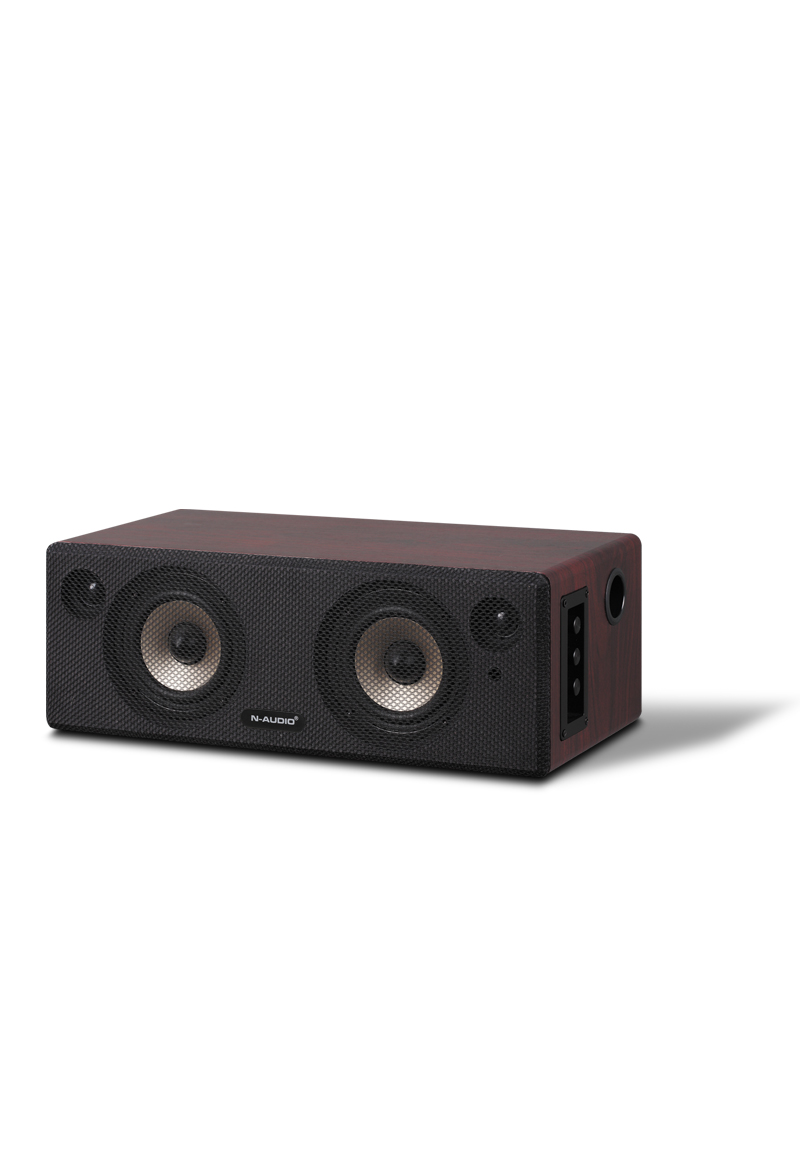

Model F4 F5
Type Dual 4-inch Bluetooth /Wifi Active Speaker Dual 5-inch Bluetooth /Wifi Active Speaker
Frequency response 50 Hz – 40 kHz 50 Hz – 38 kHz
Frequency range 50 Hz –40 kHz 50 Hz –38 KHz
Amplifier power, rms LF 35W   HF 25W LF 40W   HF 30W
Signal-to-Noise Ratio; 100 dB typical A-weighted > 100 dB typical A-weighted
Crossover frequency 2.5kHz 2.2kHz
LF Driver 4-inch Kevlar curved cone with high temperature voicecoil and damped rubber surround. Magnetically shielded 5-inch Kevlar curved cone with high temperature voicecoil and damped rubber surround, magnetically shieldedt
HF Driver 1.25-inch (32mm) magnetically shielded natural silk dome 1.25-inch (32mm) magnetically shielded natural silk dome
Input Connectors Bluetooth /Wifi 2 RCA Bluetooth /Wifi 2 RCA
Polarity Positive signal at + input produce outward LF cone displacement Positive signal at + input produce outward LF cone displacement
Input Impedance 10 KΩ 10 KΩ
Indicator Power on/off indicator on rear panel Power on/off indicator on rear panel
Power Requirements Factory-programmed for 115 V ~50/60 Hz, 230 V ~50/60 Hz, or100 V ~50/60 Hz Factory-programmed for 115 V ~50/60 Hz, 230 V ~50/60 Hz, or100 V ~50/60 Hz
Cabinet Vinyl-laminated high-acoustic-efficiency MDF Vinyl-laminated high-acoustic-efficiency MDF
Dimension (W x D x H) 422 mm x 190 mm x 150 mm 510 mm x 200 mm x 180 mm
Weight (without packing) 4.5 kg* 5.5 kg*



F Series
