USB Audio Interfaces

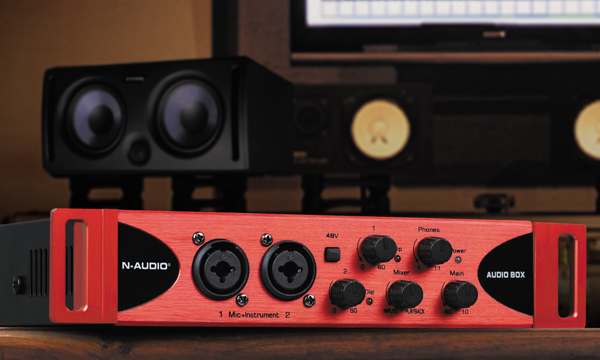

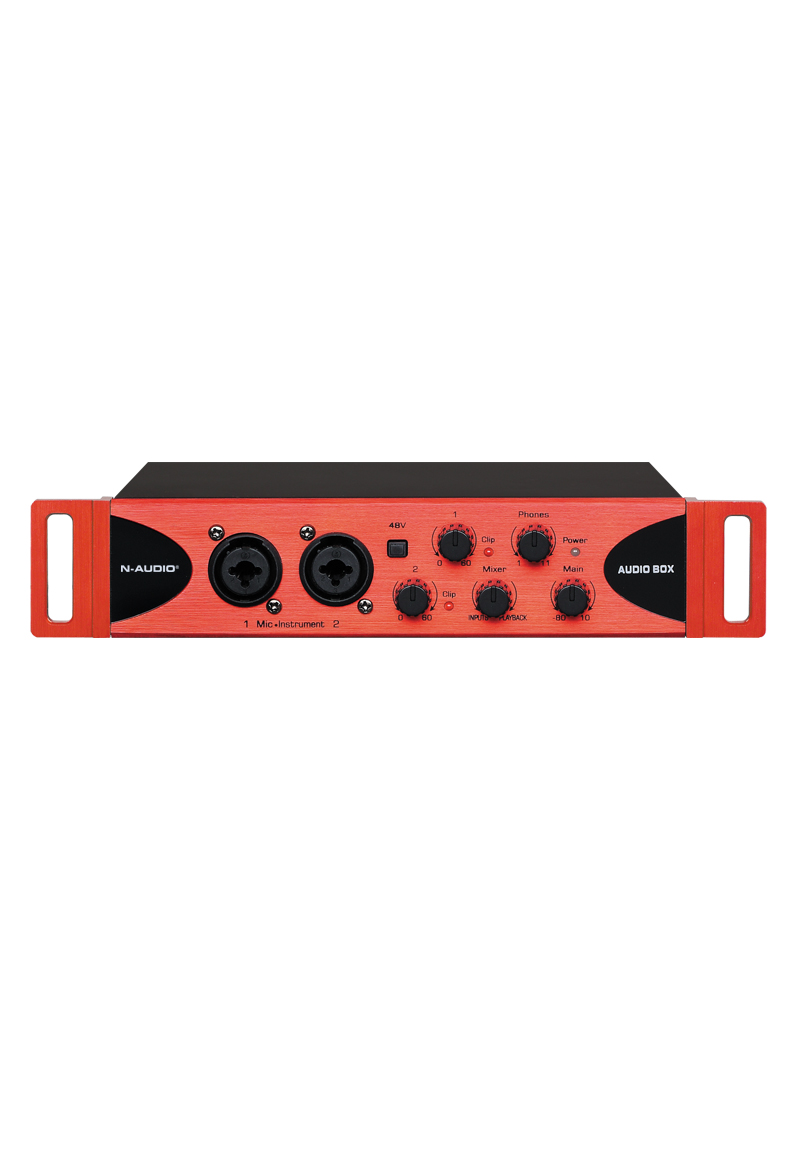

Product Description


USB BOX 2 XMAX speaker input interface (also supports instrument input standard) Support +48 V condenser microphone power supply function gain Hardware knob adjustment, a signal consumption peak indicator 2 Balanced output interface 1 stereo headphone output interface, headphones Hardware knobs Control volume MIDI input and output interface USB powered, no external power supply 24bit / 48kHz Digital Audio Standard Dynamic Range: Analog - Digital 102dB; Digital - Analog 110dB Compatible with Apple and PC dual systems (including Mac OS X 10.6.8 or higher And Windows) Support for ASIO, Core Audio, Direct Sound (Windows XP), Windows Audio Session API (Windows XP SP3, Vista x64 / x32 SP2, Windows 7 x64 / x32 SP1, Windows 8 x64 / x32).

USB BOX 2个XMAX话放输入接口(同时支持乐器输入标准) 支持+48V电容话筒供电功能 增益硬件旋钮调节,有信号消峰指示灯 2个平衡方式的输出接口 1个立体声耳机输出接口,耳机有硬件旋钮控制音量 MIDI输入输出接口 USB供电,无需外接电源供电 24bit/48kHz数字音频标准 动态范围:模拟—数字102dB;数字—模拟110dB 兼容苹果和PC双系统(包括Mac OS × 10.6.8或者更高 和 Windows ) 支持ASIO,Core Audio,Direct Sound(Windows XP),Windows Audio Session API(Windows XP SP3, Vista x64/x32 SP2, Windows 7 x64/x32 SP1, Windows 8 x64/x32)

Product Specification

Model USB AUDIO BOX
Type XLR Female Balanced
Frequency Response (±3.0 dB) 24bit/48kHz
Input Impedance (Balanced) 1200Ω
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) > 45 dB
Gain Control Range (± 1 dB) 0 dB to 35 dB
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
Phantom Power (±2 VDC) +48 VDC
Instrument Input Balanced Output Impedance 51Ω
Headphone Output Maximum Output 60 mW/Ch @ 60Ω Load/Frequency Response (±1.0 dB) 20 Hz - 30 kHz

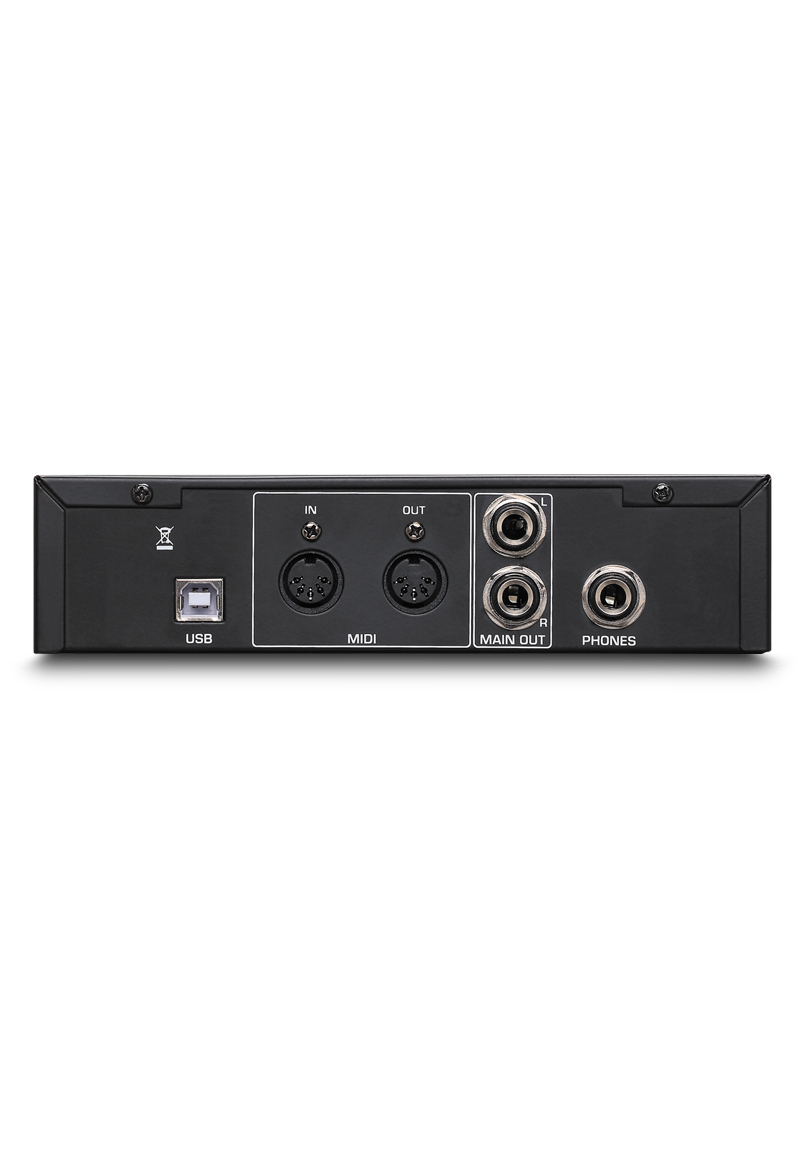

MIDI I/O Type Dual 5-pin Female DIN
Digital Audio ADC/DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) 102-110 dB/Bit Depth 24/Reference Level for 0 dBFS +4 dBu/Internal Sample Frequency Selections (kHz) 44.1, 48/Power USB Bus-powered
Physical Dimensions 1/3U (steel chassis)
Dimension (W x D x H) 237 mm x 160 mm x 50 mm
Weight (without packing) 1.0 kg*
